LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

Name: LC UPC Simplex Fiber Optic Pigtail Singlemode 09mm One Core Zirconia Ceramic
Brand: Hanxin or OEM
Price: 1 USD

Wholesale LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic from china suppliers

Brand Name : Hanxin or OEM

Model Number : LCUPC 0.9mm

Certification : ISO9001

Place of Origin : Shenzhen,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs per week

Delivery Time : 3-7 working days

Packaging Details : pp bag or plastic box

Fiber type : Single Mode Fiber

Connector Color : Blue

Fiber count : 1 core

Length : as your required

Jacket material : PVC/LSZH

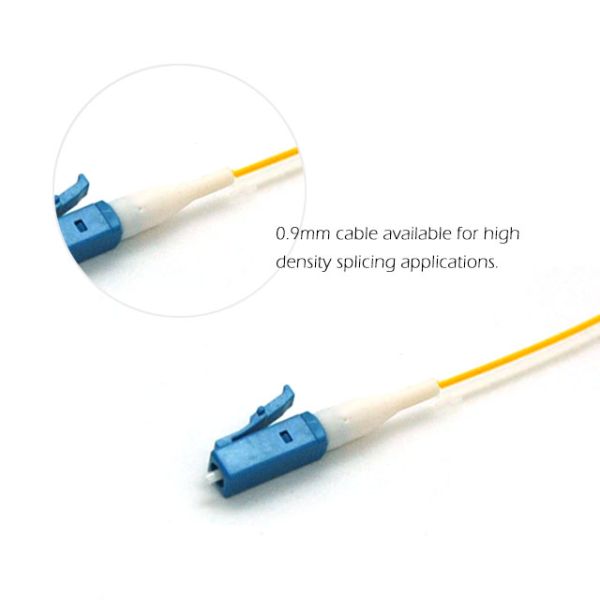

Cable diameter : 0.9mm

Contact Now

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

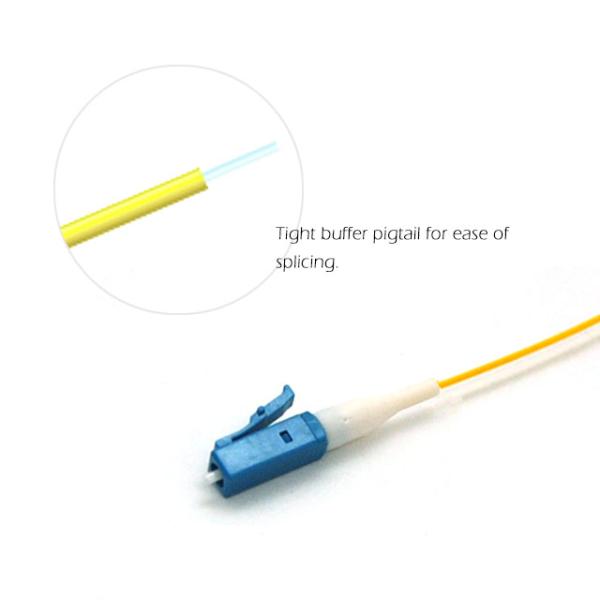

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Description

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Main Features

Low insertion loss and back reflection loss

Good exchangeability
Good Durability
High temperature stability

Specifcation

Type	Single Mode(UPC)	Single Mode(APC)	Multi Mode(UPC)
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB	APC≥60dB	/dB
Test Wavelength	1310/1550nm		850/1310nm
Connector Type	FC,SC,ST, LC, E2000, MU, MTRJ,DIN,D4, SMA…
Ferrule Material	Zirconia Ceramic
Ferrule Concentricity	<0.5μ or <1μ		<1μ
Jacket Materials	PVC, LSZH
Fiber Type	9/125-G652D 9/125-G655 9/125-G657A,G657A2,G657B2,G657B3 …		62.5/125-OM1 50/125-OM2 50/125-OM3 50/125-OM4 50/125-OM5
Fiber Brand	YOFC, Corning...
Cord Type	Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable Diameter	0.9mm, 2.0mm, 3.0mm....
Length	Customized

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
